-Resources 폴더에 chest_data.json 추가
-newtonsoft Json 패키지 추가
-ChestData 클래스 추가

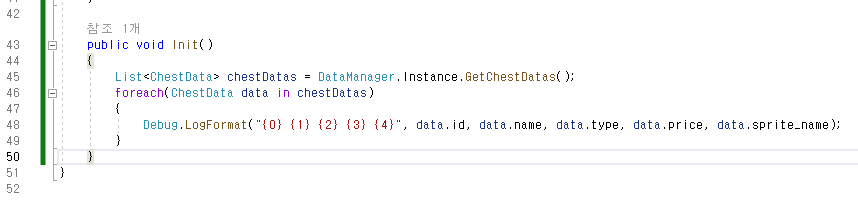

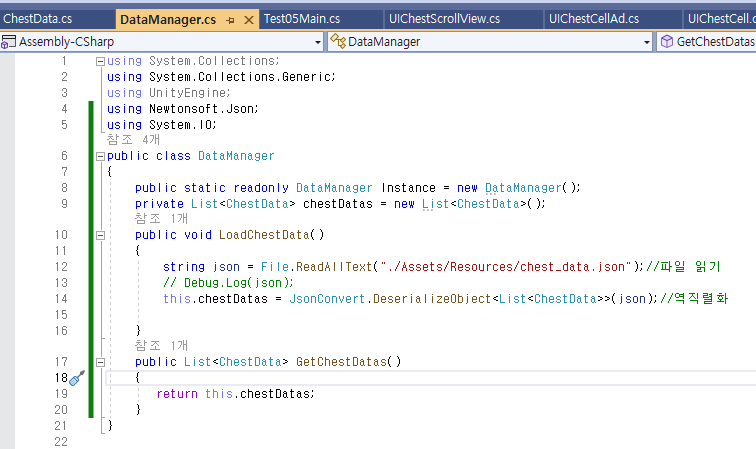

-DataManager 스크립트는 싱글톤으로 데이터를 관리한다.

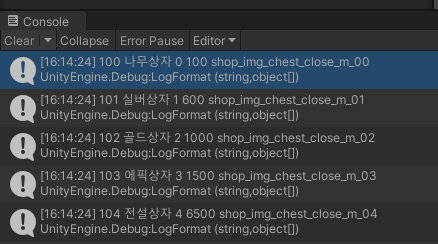

=> json에서 데이터를 잘 가져오는 것을 로그로 확인했다.
이제 기존에 만들어둔 Cell을 지웠다. 지우기 전에 UIChestCellAd와 UIChestCell을 프리팹으로 만들어 두었다.
=> Data를 기반으로 프리팹 인스턴스를 생성하기 위해.(이 때 UIChestScrollview/content 자식으로 붙인다.

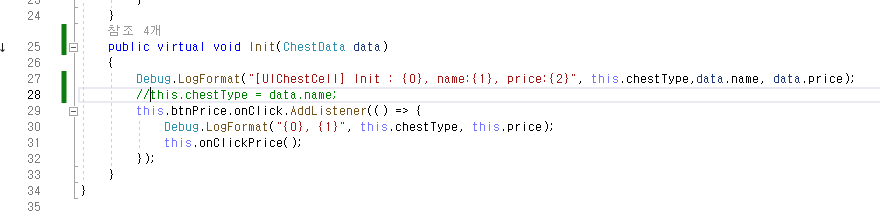

Data를 매개변수로 넘기도록 코드 수정
=> ScrollView의 Init에서 코드 수정. cell에 요소 하나의 데이터를 넘기기 위해 매개변수로 넣어줌
=> Cell 의 Init은 매개변수로 받은 데이터를 받는다.

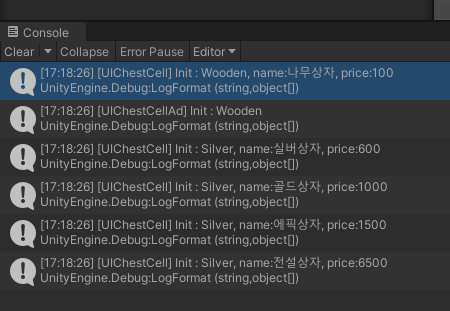

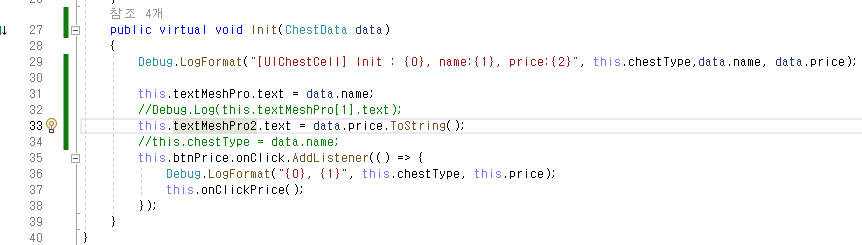

UIChestCell의 Init 메서드에서는 Data를 기반으로 이름, 가격을 표시 한다

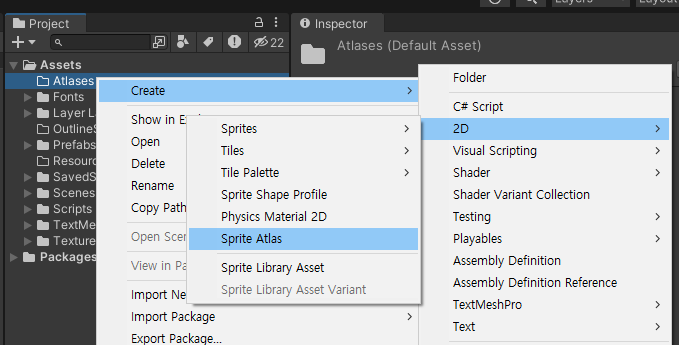

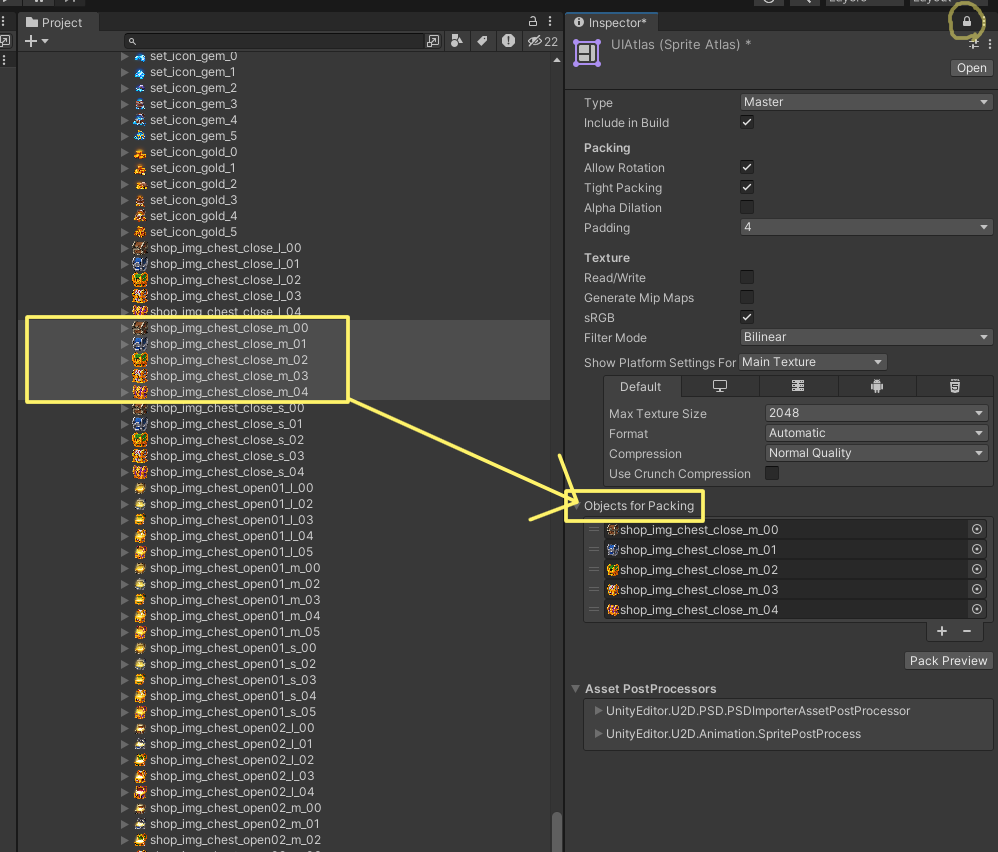

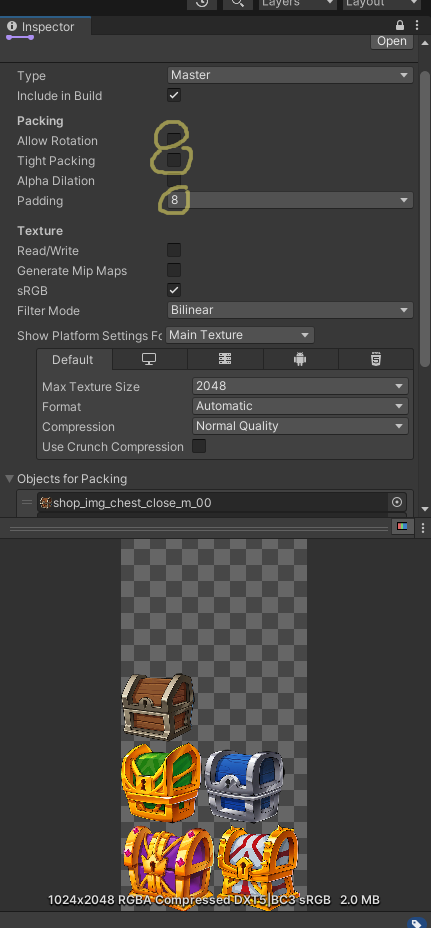

이제 sprite를 추가하도록 코드를 수정하려 한다. 먼저 스프라이트가 필요하다. 아틀라스를 생성해 주었다.

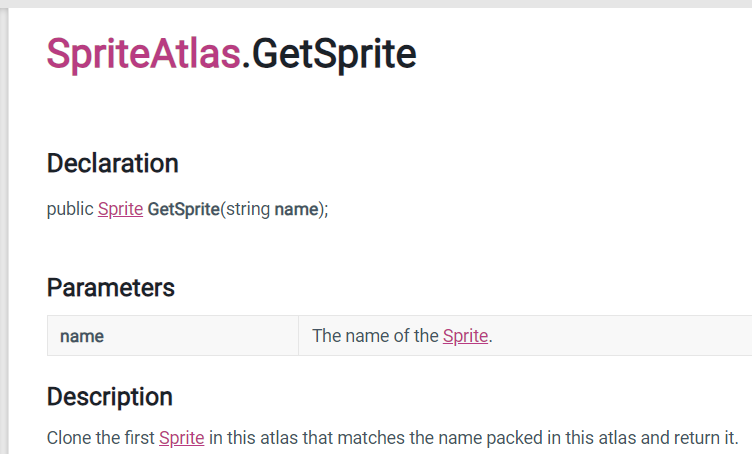

https://docs.unity3d.com/ScriptReference/U2D.SpriteAtlas.GetSprite.html
-Atlas.GetSprite(string name)

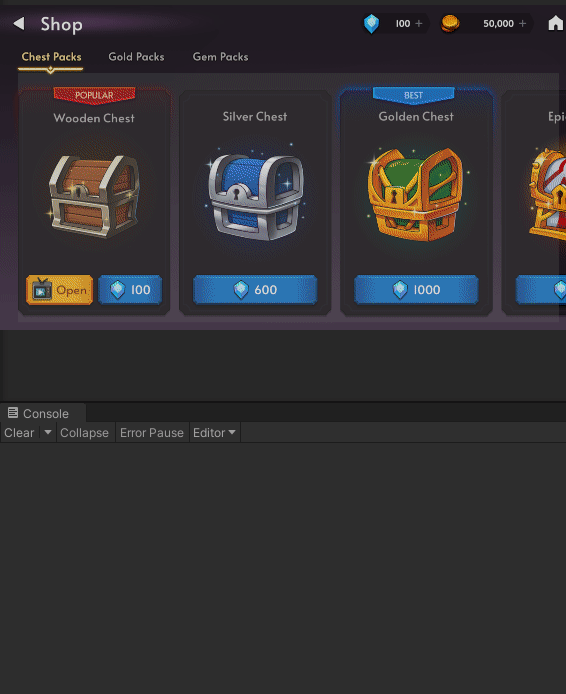

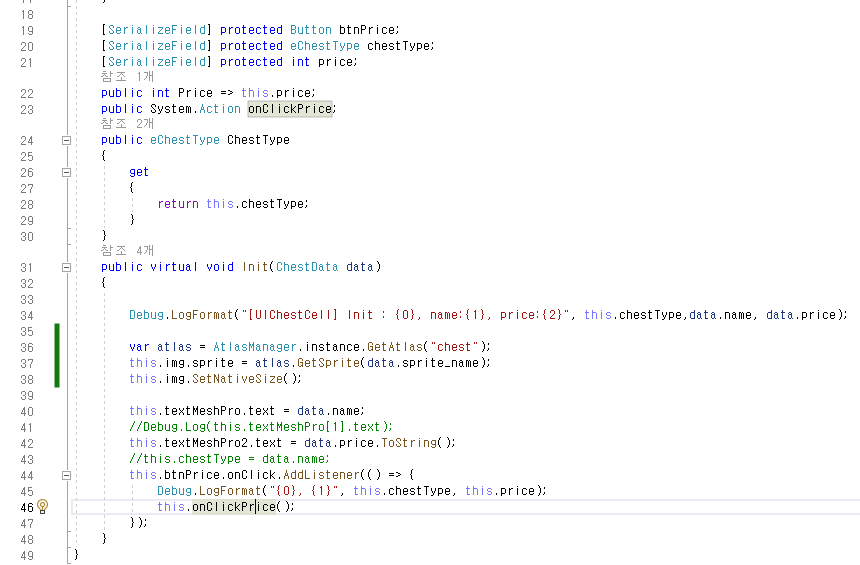

-cell에서 Atlas를 불러온 후 이미지에 GetSprite로 아틀라스에서 스프라이트를 이름으로 받아 넣어준다.
참고)

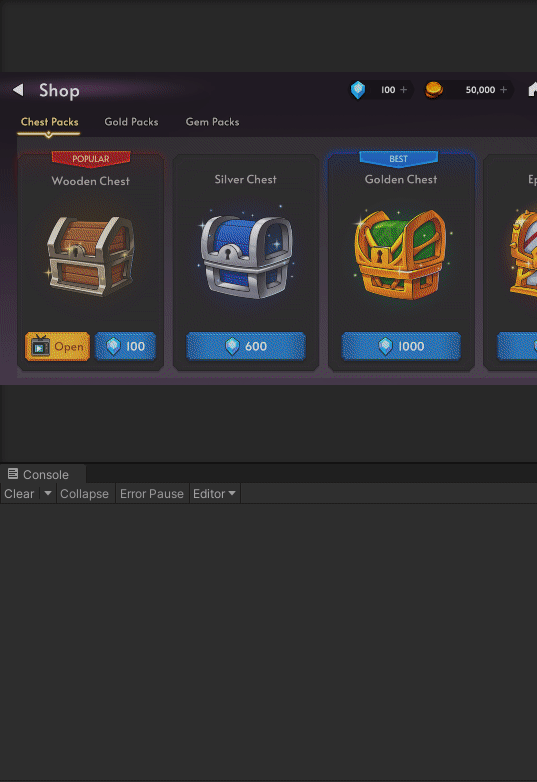

-다만 아직 onclick하는 걸 정정 스크롤뷰에서 동적으로 코드 수정을 덜해서 하단의 버튼을 클릭하면 널 나온다. 수정필요!
using System.Collections;
using System.Collections.Generic;
using UnityEngine;
public class ChestData
{
public int id;
public string name;
public int type;
public int price;
public string sprite_name;
}
using System.Collections;
using System.Collections.Generic;
using UnityEngine;
using Newtonsoft.Json;
using System.IO;
public class DataManager
{
public static readonly DataManager Instance = new DataManager();
private List<ChestData> chestDatas = new List<ChestData>();
public void LoadChestData()
{
string json = File.ReadAllText("./Assets/Resources/chest_data.json");//파일 읽기
// Debug.Log(json);
this.chestDatas = JsonConvert.DeserializeObject<List<ChestData>>(json);//역직렬화
}
public List<ChestData> GetChestDatas()
{
return this.chestDatas;
}
}
using System.Collections;
using System.Collections.Generic;
using UnityEngine;

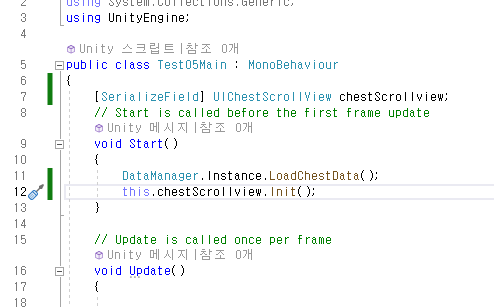

public class Test05Main : MonoBehaviour
{
[SerializeField] UIChestScrollView chestScrollview;
// Start is called before the first frame update
void Start()
{
AtlasManager.instance.LoadAtlases();
DataManager.Instance.LoadChestData();
this.chestScrollview.Init();
}
// Update is called once per frame
void Update()
{
}
}
using System.Collections;
using System.Collections.Generic;
using Unity.VisualScripting;
using UnityEngine;
using UnityEngine.U2D;
public class UIChestScrollView : MonoBehaviour
{
private List<UIChestCell> cells = new List<UIChestCell>();
[SerializeField] GameObject contentGo;
[SerializeField] GameObject uiChestCellAdGo;//프리팹
[SerializeField] GameObject uiChestCellGo;//프리팹
void Start()
{
for (int i = 0; i < cells.Count; i++)
{
UIChestCell cell = cells[i];
cell.onClickPrice = () => {
Debug.LogFormat("<color=yellow>{0}, {1}</color>", cell.ChestType, cell.Price);
};
var chestType = (UIChestCell.eChestType)i;
if (chestType == UIChestCell.eChestType.Wooden)
{
//var cellAd = (UIChestCellAd)cell;
UIChestCellAd cellAd = cell as UIChestCellAd;
cellAd.onClickAd = () =>
{//cellAd에서 클릭 이벤트 발생하면
Debug.LogFormat("<color=yellow>{0}, 광고보기</color>", cell.ChestType);
};
}
// cell.Init();
}
}
public void Init()
{
List<ChestData> data = DataManager.Instance.GetChestDatas();
for(int i=0; i<data.Count; i++)
{
//Debug.LogFormat("{0} {1} {2} {3} {4}", data[i].id, data[i].name, data[i].type, data[i].price, data[i].sprite_name);
if (data[i].id == 100)
{
GameObject go = Instantiate<GameObject>(this.uiChestCellAdGo, this.contentGo.transform);
this.cells.Add(go.GetComponent<UIChestCell>());
//sprite = this.atlas.GetAtlas(data[i].sprite_name);
this.cells[i].Init(data[i]);//cell에 요소 하나의 데이터를 넘기기 위해 매개변수로 넣어줌.
}
else
{
GameObject go = Instantiate<GameObject>(this.uiChestCellGo, this.contentGo.transform);
this.cells.Add(go.GetComponent<UIChestCell>());
this.cells[i].Init(data[i]);
}
}
}
}
using System.Collections;
using System.Collections.Generic;
using UnityEngine;
using UnityEngine.U2D;
public class AtlasManager : MonoBehaviour
{
[SerializeField] private string[] arrAtlasNames;
private Dictionary<string, SpriteAtlas> dicAtlases = new Dictionary<string, SpriteAtlas>();
public static AtlasManager instance;
private void Awake()
{
if (instance != null && instance != this)
{
Destroy(this);
throw new System.Exception("An instance of this singleton already exists.");
}
else
{
instance = this;
}
DontDestroyOnLoad(this.gameObject);
}
public void LoadAtlases()
{
foreach (var atlasName in this.arrAtlasNames)
{
var atlas = Resources.Load<SpriteAtlas>(atlasName);
this.dicAtlases.Add(atlasName, atlas);
}
Debug.LogFormat("{0}개의 아틀라스를 로드 했습니다. ", this.dicAtlases.Count);
}
public SpriteAtlas GetAtlas(string atlasName)
{
return this.dicAtlases[atlasName];
}
}
using System.Collections;
using System.Collections.Generic;
using UnityEngine;
using UnityEngine.UI;
using TMPro;
using UnityEngine.U2D;
public class UIChestCell : MonoBehaviour
{
[SerializeField] Image img;
// [SerializeField] AtlasManager atlas;
[SerializeField] TextMeshProUGUI textMeshPro;
[SerializeField] TextMeshProUGUI textMeshPro2;
public enum eChestType
{
Wooden, Silver, Golden, Epic, Legendary
}
[SerializeField] protected Button btnPrice;
[SerializeField] protected eChestType chestType;
[SerializeField] protected int price;
public int Price => this.price;
public System.Action onClickPrice;
public eChestType ChestType
{
get
{
return this.chestType;
}
}
public virtual void Init(ChestData data)
{
Debug.LogFormat("[UIChestCell] Init : {0}, name:{1}, price:{2}", this.chestType,data.name, data.price);
var atlas = AtlasManager.instance.GetAtlas("chest");
this.img.sprite = atlas.GetSprite(data.sprite_name);
this.img.SetNativeSize();
this.textMeshPro.text = data.name;
//Debug.Log(this.textMeshPro[1].text);
this.textMeshPro2.text = data.price.ToString();
//this.chestType = data.name;
this.btnPrice.onClick.AddListener(() => {
Debug.LogFormat("{0}, {1}", this.chestType, this.price);
this.onClickPrice();
});
}
}
using System.Collections;
using System.Collections.Generic;
using UnityEngine;
using UnityEngine.UI;
public class UIChestCellAd : UIChestCell
{
[SerializeField]
private Button btnAd;
public System.Action onClickAd;
private void Start()
{
}
public override void Init(ChestData data)
{
//base.Init();
base.Init(data);
Debug.LogFormat("[UIChestCellAd] Init : {0}", this.chestType);
this.btnAd.onClick.AddListener(() => {//버튼 클릭시
Debug.LogFormat("{0}, 광고보기", this.chestType);
this.onClickAd();//버튼이 클릭된 이벤트 발생
});
}
}
